Parekh House - Charles Correa


Parekh house

  • LOCATION: AHMEDABAD, 1967-68
  • ELEVATION : 53 m
  • LATITUDE : 23 04N
  • LONGITUDE : 72 38E

About the building:

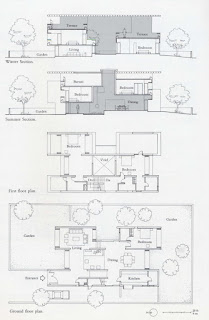

  • Two pyramidal sections from housing types developed for Cablenagar
  • Summer section – to be used during daytime; protects interior from heat
  • Winter section – to be used in early mornings and evenings; opens up the terraces to the sky
  • Since site faces east-west, house consists of 3 bays
  • Summer section sandwiched between winter section and service bay (for circulation, kitchen and toilets)
  • Bearing walls made brick .

Climatic conditions:

TEMPERATURE:

  • summer: 45 °C – 30 °C
  • winter: 24°C – 5 °C
  • max. in last 18 years: 47 °C
  • min. in last 18 years: 5 °C

RAINFALL:

  • avg.: 76 cms
  • max. in last 122 yrs.: 145 cms
  • min. in last 122 yrs.: 13 cms

So the temperature shows that the city is hot and humidity shows that its dry.

Design concept:

Functional Aspects:

  • cubical composition
  • arrangement of spaces as per their time of use.

Passive features

  • A void is provided
  • Louvers
  • Level differences

How sun effects the design…?

  • Sun path : N-E to N-W
  • Exposure of east and west façade to the sun.
  • Hence the design came…the three block system..

Other features:

  • Over head pargolas-helps in shading the wall during the day time.
  • Recessed or Sunken windows-allows only diffused light into the building.
  • Louvered doors-it also cuts off the heat and direct sun coming from the entrance.
  • STEP PYRAMIDAL form of spaces inversing with respect to the season.
  • Garden space in front of the house.
  • Material chosen-concrete and brick covering.
  • Good climatic responsive building since 37 years of its construction









































Parekh House - CAD DWG File

Download CAD File - Google Drive Link




Parekh House - Sketch Up 3D File

Download 3D File - Google Drive Link
